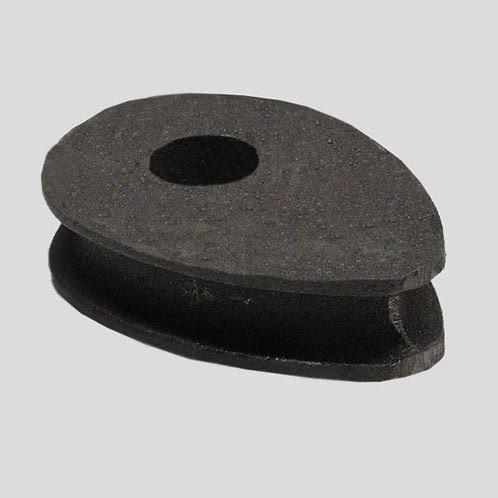

Solid Blank Wire Rope Thimble 8MM-38MM (Self Colour Cable Drillable Rigging)
Solid Blank Wire Rope Thimble 8MM-38MM (Self Colour Cable Drillable Rigging)
Couldn't load pickup availability
When creating loops in wire rope having the best suited hardware raises efficiency and effectiveness. Our Self Coloured Solid Thimble is extremely well suited for that job.
Having been made from steel our Wire Rope Cable Thimbles have a solid teardrop shaped body that is extremely strong and durable. Acting as a shield, our Cable Thimble would prevent kinks and fraying that could cause the loops in your wire cable to lose tension during rigorous and continuous movement. These are self coloured allowing you to finish them as you wish however that can be used just as they are without any other treatment.
Ideally suited for use with lifting, tensioning and marine applications, our Heavy Duty Thimbles are extremely easy to use. Simply wrap the Wire Rope around the groove which runs around the outside of the thimble before securing the rope in place with an appropriate clip. These can also be easly drilled if required.
Suits Wire Diameter: 8MM - 38MM
Finish: Self Colour
| Size | A (MM) | B (MM) | C (MM) | D (MM) |
| 8MM | 56.5 | 40.6 | 7.8 | 15.4 |
| 10MM | 69.9 | 50 | 10.2 | 18.4 |
| 11MM | 71.5 | 49.7 | 10.7 | 18.3 |
| 12MM | 85.3 | 61.8 | 12.2 | 22.3 |
| 16MM | 109.3 | 80.5 | 17.5 | 27.1 |
| 20MM | 144.4 | 102.5 | 21.7 | 32.2 |
| 22MM | 153.6 | 111.2 | 23.8 | 34.1 |
| 26MM | 152.6 | 113.7 | 27 | 37.4 |
| 28MM | 203 | 142.4 | 31.1 | 43.1 |
| 32MM | 220 | 160 | 34.6 | 47.3 |
| 35MM | 250 | 180 | 39 | 55.2 |
| 38MM | 278 | 197 | 43.4 | 58.5 |
