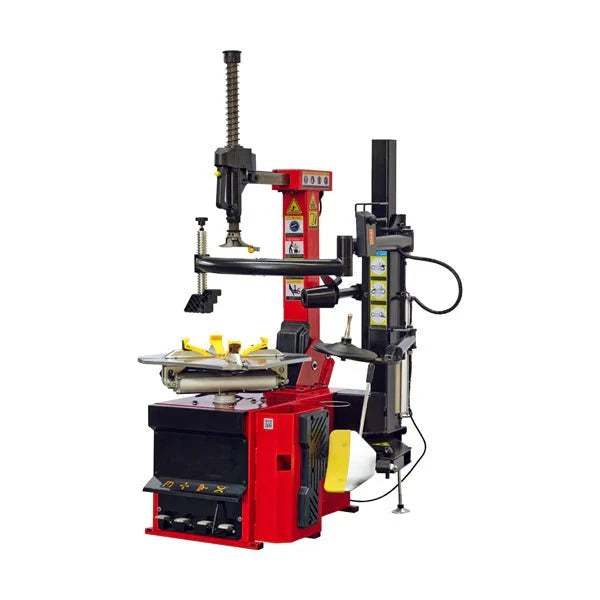

CT2880 - Electric Tyre Changer 230V

Tyre Changer - Electric 230V

Pneumatically operated tilting column with right help arms and tubeless tyre inflation system.
Pneumatic-powered upper disc holds bead into the wheel drop for mounting.
Designed for low-profile EMT and high-performance tyres and wheels.
Loosens upper bead for demounting.
Push down upper bead for lubrication and tyre tool insertion.
Lower upper bead for inspection between bead and demount head.
Lower upper bead for inserting the bead clamp, allowing the bead to be lifted over the mount/demount head.
Pneumatic-powered lower lifting arm holds lower bead into the wheel drop while lifting the lower bead over the mount/demount head.
Pneumatic-powered lower lifting arm re-loosens lower bead if it reseats.

Technical Specifications
Motor Power: 0.75kw / 1.1kw
Power Supply: 110V / 220V / 380V
Max. Wheel Diameter: 41in. / 1040mm
Max. Wheel Width: 14in. / 355mm
Outside Clamping: 12 - 24in.
Inside Clamping: 14 - 26in.
Air Supply: 8bar - 10bar
Bead Breaker Force: 2500kg
Noise Level: <70db
Package Size (Main Body): 108 x 90 x 96cm
Right Help Arm Size: 105 x 45 x 43cm
