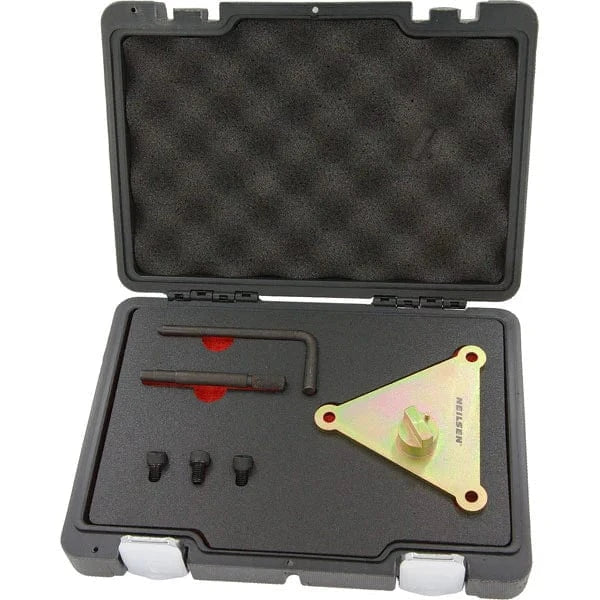

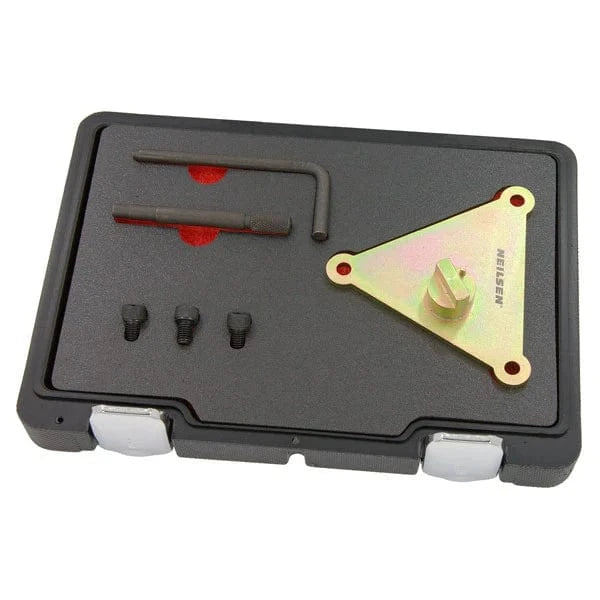

CT6394 - Engine Timing Tool Set Alfa Fiat & Lancia 0.9 Twin Air

This tool kit is specifically designed to lock the camshaft and crankshaft in place, facilitating the removal and replacement of the timing chain on Fiat's new low-emission, high-efficiency twin-cylinder engine. It is important to note that Fiat recommends using appropriate electronic diagnostic software to reset the onboard electronic control systems after rebuilding these engines.Suitable for the following models
Alfa Romeo Mito (since 2012) Engine Code 312A2000
Fiat 500/500C (since 2010) Engine Code 312A2000
Fiat Panda (since 2012) Engine Code 312A2000
Fiat Punto (since 2012) Engine Code 312A2000
Lancia Ypsilon (since 2011) Engine Code 312A2000
Crankshaft locking pin to be used as OEM 2000035300
Belt pulley locking pin to be used as OEM 2000035200
Camshaft locking plate to be used as OEM 2000035100
