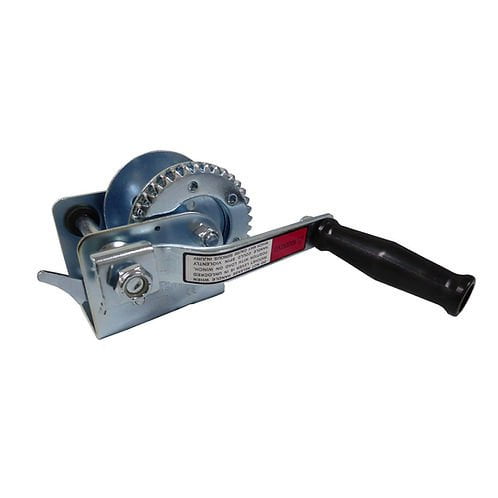

Manual Hand Trailer Winch 600LB - 3700LB in Duracoat Zinc & Black Finishes (Hand Operated Crank)

270KG - 1684KG Hand Operated Pulley Winch with Duracoat, Zinc or Black with Brake Finishes



Gear Ratios

Duracoat - 3:1 with a 2 way Prawl

Zinc Plated - 12:1/5:1 with a 3 way Prawl

Black with Brake - 4:1



These manual hand winches can be used for pulling trailers, cars, boats, bikes, caravans and many more.

Our variety of finishes all give you fantastic corrosion protection. All of these winches have a sturdy plastic handle for comfort whilst using.

The Black finish winch comes fitted with an integral brake as an added safety feature.

We supply the straps for use with these hand winches.

*Not To Be Used For Lifting*



Duracoat Dimensions

Product Code	Capacity	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)
SFHW06D	600lbs / 270kg	240	50	145	88	127	60	2	102
SFHW10D	1000lbs / 450kg	230	50	190	90	185	65	50	150
SFHW12D	1200lbs / 540kg	235	51	190	90	185	65	52	152
SFHW14D	1400lbs / 635kg	270	51	195	89	183	65	48	149
SFHW20D	2000lbs / 900kg	310	67	240	130	235	134	40	155
SFHW25D	2500lbs / 1100kg	300	70	245	130	230	140	60	190



Zinc Plated Dimensions

Product Code	Capacity	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)	G (MM)	H (MM)
SFHW06	600lbs / 270kg	240	50	150	89	126	60	2	103
SFHW10	1000lbs / 450kg	245	50	195	89	185	63	55	151
SFHW12	1200lbs / 540kg	250	50	195	89	185	64	50	151
SFHW14	1400lbs / 635kg	240	60	195	90	190	65	50	150
SFHW20	2000lbs / 900kg	310	67	250	130	230	135	60	150
SFHW25	2500lbs / 1100kg	300	70	245	130	230	140	60	190
SFHW37	3700lbs / 1684kg	330	62.5	270	130	260	121.5	60	320



Black Finish with Brake Dimensions

Product Code	Capacity	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	F (MM)
SFHWB06	600lbs / 270kg	300	50	198	100	143	155
SFHWB08	800lbs / 360kg	300	50	198	100	151	163
SFHWB12	1200lbs / 540kg	300	50	198	100	160	180
SFHWB16	1600lbs / 725kg	310	64	257	115	185	217
SFHWB20	2000lbs / 900kg	325	62	257	130	185	275
SFHWB25	2500lbs / 1100kg	325	62	257	130	185	283
