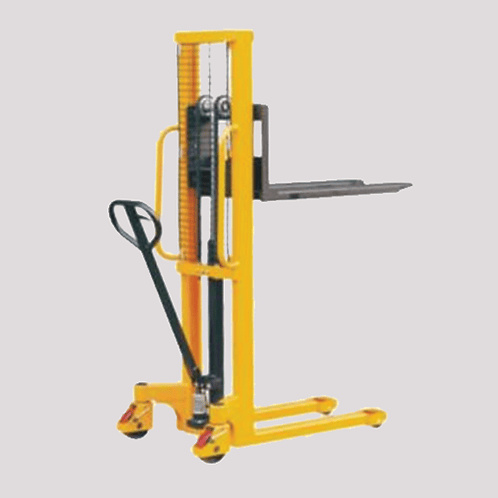

Single Mast Stacker APPA Series
Single Mast Stacker APPA Series
Regular price
€789,95 EUR
Regular price
Sale price
€789,95 EUR
Unit price
/
per
Tax included.
Couldn't load pickup availability
- Single Mast Stacker APPA Series designed for heavy duty, intensive and commercial use.
- Ergonomically designed handle for simple and comfortable operation
- Single mast without view-obstructing components.
- Easy to operate wuth quick-lift function.
- Forced synchronous steering on two steering wheels.
- Quick lifting type available
- Conforms to EN1757-1
- APPA0515 Specification
- Capacity: 500kg
- Load centre: 440mm
- Max fork height: 1170mm
- Min fork height: 140mm
- Fork length: 885mm
- Fork width: 160mm
- Overal fork width: 565mm
- Lifting height per stroke: 20mm
- Ground clearance: 24mm
- Min turning radius: 1086mm
- Front load roller: 80mm dia x 70mm
- Steering wheel: 150mm dia x 40mm
- Overall length: 1460mm
- Overall Width: 590mm
- Overall height: 1650mm
- Net weight: 210kg
- APPA1015 Specification
- Capacity: 1000kg
- Load centre: 585mm
- Max fork height: 1500mm
- Min fork height: 88mm
- Fork length: 1150mm
- Fork width: 160mm
- Overal fork width: 520mm
- Lifting height per stroke: 25mm
- Ground clearance: 24mm
- Min turning radius: 1086mm
- Front load roller: 80mm dia x 70mm
- Steering wheel: 150mm dia x 50mm
- Overall length: 1750mm
- Overall Width: 710mm
- Overall height: 2040mm
- Net weight: 220kg
- APPA1025 Specification
- Capacity: 1000kg
- Load centre: 600mm
- Max fork height: 2590mm
- Min fork height: 88mm
- Fork length: 1150mm
- Fork width: 160mm
- Overal fork width: 525mm
- Lifting height per stroke: 15mm
- Ground clearance: 24mm
- Min turning radius: 1086mm
- Front load roller: 80mm dia x 70mm
- Steering wheel: 150mm dia x 50mm
- Overall length: 1730mm
- Overall Width: 715mm
- Overall height: 1830mm
- Net weight: 330kg
- APPA1515 Specification
- Capacity: 1500kg
- Load centre: 585mm
- Max fork height: 1635mm
- Min fork height: 85mm
- Fork length: 1150mm
- Fork width: 160mm
- Overal fork width: 520mm
- Lifting height per stroke: 12.5mm
- Ground clearance: 24mm
- Min turning radius: 1100mm
- Front load roller: 80mm dia x 70mm
- Steering wheel: 180mm dia x 50mm
- Overall length: 1740mm
- Overall Width: 710mm
- Overall height: 2045mm
- Net weight: 250kg
- APPA2015 Specification
- Capacity: 2000kg
- Load centre: 585mm
- Max fork height: 1630mm
- Min fork height: 85mm
- Fork length: 1150mm
- Fork width: 160mm
- Overal fork width: 540mm
- Lifting height per stroke: 12mm
- Ground clearance: 24mm
- Min turning radius: 1100mm
- Front load roller: 80mm dia x 70mm
- Steering wheel: 180mm dia x 50mm
- Overall length: 1750mm
- Overall Width: 720mm
- Overall height: 2050mm
- Net weight: 280kg
