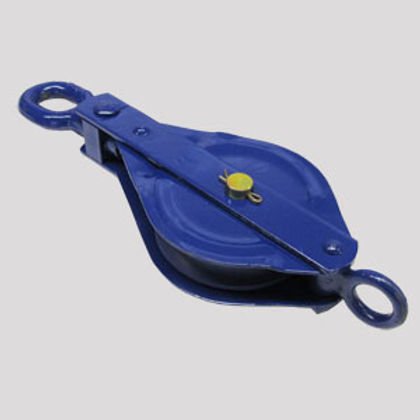

Single Sheave Lifting Blocks Swivel Eye or Swivel Hook from 0.5 Ton to 6 Ton

Single Sheave Lifting Blocks Swivel Eye or Swivel Hook from 0.5 Ton to 6 Ton

€36,95 EUR
€36,95 EUR
Sale Sold out
Tax included.

Single Blocks in 0.5T, 1T, 2T, 3T, 4T, 5T or 6T with Swivel Hook or Swivel Eye

Wire Sizes: 8MM, 10MM, 13MM, 16MM, 22MM & 25MM

Safe Working Loads: 0.5 Ton, 1 Ton, 1.5 Ton, 2 Ton, 3 Ton, 4 Ton, 5 Ton & 6 Ton

Finish - Blue Painted
Factor Of Safety - 4:1

Conforms To: BS EN 13157: 2004 + A1: 2009

Single Lifting Block with Eye Dimensions

Product Code Safe Working Load Suits Rope (MM) A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) G(MM)
SFSBE075 0.5 Ton 8 282 75 51 21 87 22.5 32
SFSBE100 1 Ton 10 345 100 62 20.5 112 26.5 38
SFSBE125 1.5 Ton 13 405 125 56 27 140 29.5 42
SFSBE150 2 Ton 16 450 150 78 27.5 170 35 51.5
SFSBE200 4 Ton 22 635 200 114 27.5 220 49 81
SFSBE250 5 Ton 22 745 250 136 35 275 49.5 83.5
SFSBE300 6 Ton 25 840 300 150 36 330 62 99

Single Lifting Block with Hook Dimensions


Product Code Safe Working Load Suits Rope (MM) A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) G(MM)
SFSBH100 1 Ton 10 345 100 61 20.5 112 18.5 27
SFSBH125 1.5 Ton 13 425 125 59 26 140 20 30
SFSBH150 2 Ton 16 485 150 69 27 170 30 40
SFSBH175 3 Ton 19 575 175 92 23 200 28 42
SFSBH200 4 Ton 22 675 200 113 27 220 33 46
SFSBH250 5 Ton 22 800 250 135 35 275 50 61
SFSBH300 6 Ton 26 900 300 156 35.5 370 58 66

Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope.
