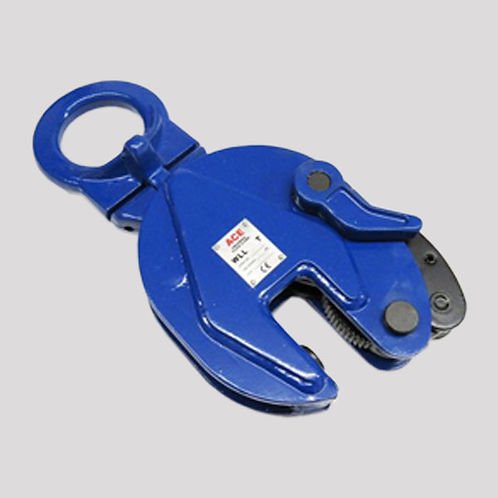

Vertical Plate Clamps

Vertical Plate Clamps

€54,95 EUR
€59,40 EUR €54,95 EUR
Sale Sold out
Tax included.
  • Vertical Plate Lifting Clamp - Grip Lift

    Lifting Capacity - 0.75 Ton

    Jaw Opening - 0-15MM

    Conforms To BS EN 13155

    CODE MIN STEEL THICKNESS MM MIN LOADING KGS A (MM) (MAX) A (MM) MIN B (MM) MAX B (MM) MIN C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) I (MM) J (MM)
    SFVLC0.75 3 150 205 190 105 100 45 130 36 30 25 26 11 41
    SFVLC1.5 4 300 365 340 175 180 57 200 73 55 29 67 17 76
    SFVLC1.6 24 320 380 355 195 185 58 180 74 60 47 67 17 76
    SFVLC2 5 400 380 345 185 175 60 210 74 60 47 67 18 76
    SFVLC3 6 600 443 390 250 245 83 243 80 62 46 75 21 91
    SFVLC3.2 30 600 435 400 245 240 83 252 78 63 60 77 22 93
    SFVLC4.5 30 900 435 410 240 235 81 255 75 63 56.5 75 22 92


    These Vertical Lifting Plate Clamps Are Used For Vertical Lifting And Turning Of Plate Material.

    These Clamps Do Not Slip When Lifting Force Is Applied Or When Being Lowered.

    These Clamps Are Equipped With An Articulating Shackle To Provide A Versatile And Smooth Operation.
